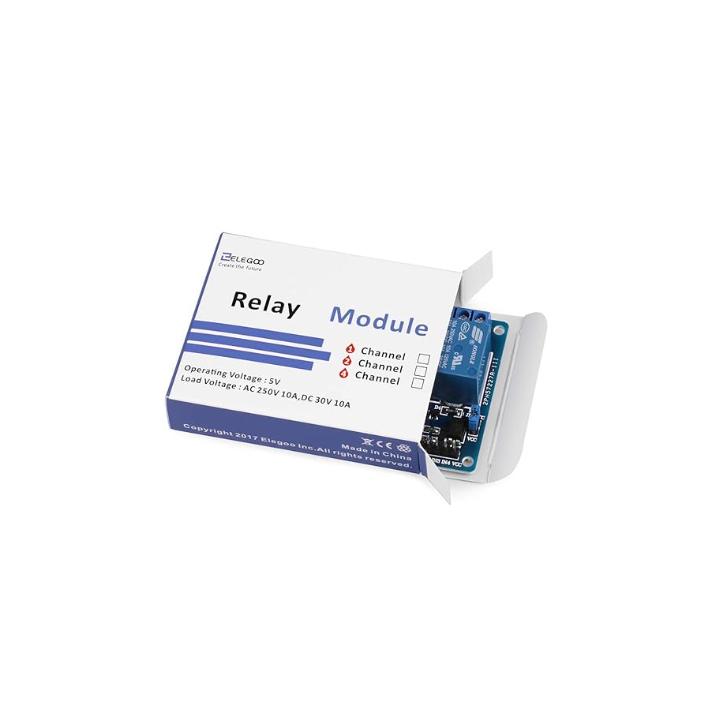

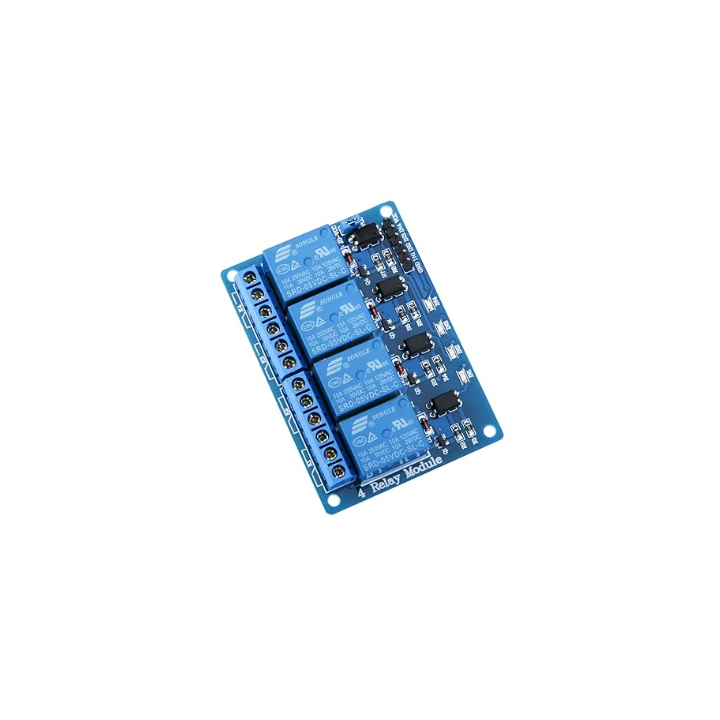

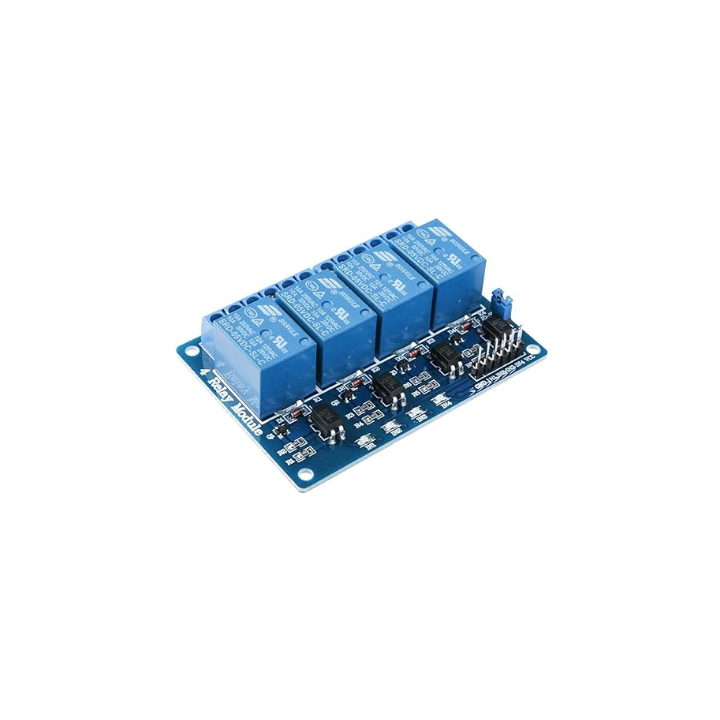

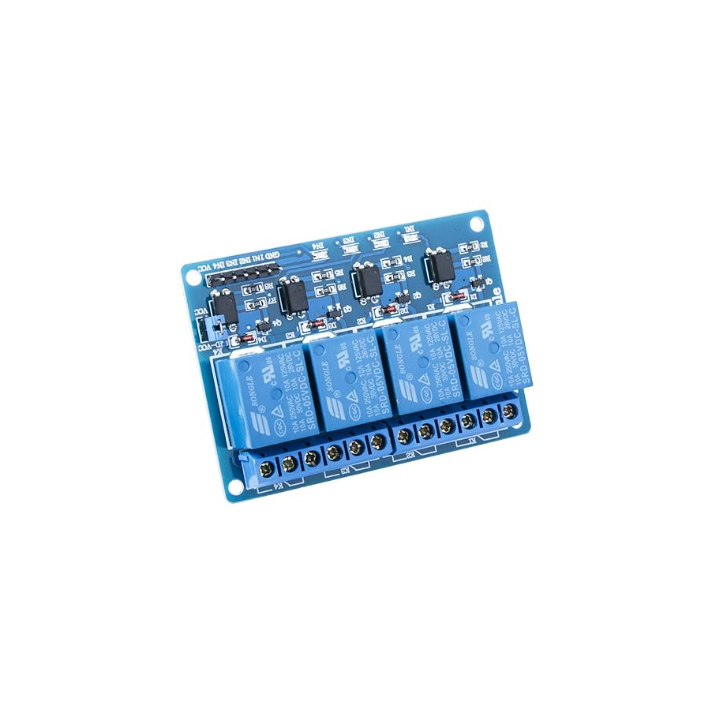

ELEGOO Relay Module 4 Channel DC 5V

ELEGOO 4 Channel&8 Channel DC 5V Relay Module with Optocoupler

• Switching capacity available by 10A in spite of small size design for high density P.C. board mounting technique.
• UL,CUL,TUV recognized. · Selection of plastic material for high temperature and better chemical solution performance.
• Sealed types available.
• Simple relay magnetic circuit to meet low cost of mass production. Widely used for Domestic appliance, office machine, audio, equipment, automobile, etc. ( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)

Power Supply : 5V
Load Voltage : AC 250V 10A,DC 30V 10A
Current Rating: Typical current for 4-channel relay is around 400mA; for 8-channel relay, approximately 700mA. Strongly recommend using an external 5V 1A power supply and common ground with the control board.
Total Size : 134mm x 52mm x 17mm/ 5.3" x 2.0" x 0.7" (L*W*H)
Mounted Hole Size : 3mm/ 0.12"
Upper Mounted Hole Center Distance : 129.2 x 46.7mm/5.1" x 1.8"(L*W)
Lower Mounted Hole Center Distance : 128.5 x 46.7mm/5.1" x 1.8"(L*W)
Material: Electric Part Weight: 122g

Notice: The input signal trigger mode is a low-level effective mode that ‘closes’ the normally open (NO) switch at low-level input. The advantages of a low-level drive, are the system power reset, the load will not work, and high security.
